Combination Rotogravure Printing Machine

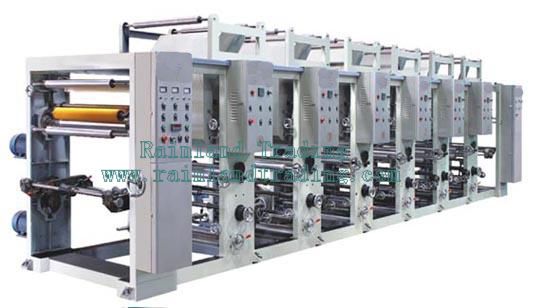

ASY-B Model Series of Combination Rotogravure Printing Machine

Product Description:

Use:

This machine is used for BOPP,PET,PVC,PE Rolling Paper etc with good printing performance of rolling material for multi-color continuous printing.
Characteristics:

1.360-degree printing plate aligning device ,easy operation.
2.Dual-drying tunnel farinfrared fire tube heating system.
3.Magnetic powder brake control for unreeling tension system, reeling with moment motor.
4.Reeling in and unreeling at dual stations,semi-automatic material change without machine halt.
5.One-off printing on both sides.

Main Technical Variables:

Model	ASY-B600/6COLORS	ASY-B800/6COLORS	ASYB1000/6COLORS
Length of Printing	220mm-1100mm	220mm-1100mm	220mm-1100mm
Width of Printing	600mm	800mm	1000mm
Speed of Printing	10-60mm	10-60mm	10-60mm
Accuracy of Registration	±0.15mm	±0.15mm	±0.15mm
Total Power	28kw	32kw	36kw
Weight of Machine	5000kg	5500kg	6000kg
Overall Dimensions	8800×1950×2300mm	8800×2150×2300mm	8800×2350×2300mm
