Combination Rotogravure Printing Machine

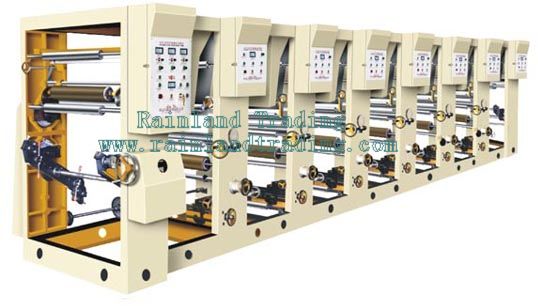

ASY Model Series of Combination Rotogravure Printing Machine

Product Description:

Use:

This machine is used for BOPP,PET,PVC,PE Rolling Paper etc with good printing performance of rolling material for multi-color continuous printing.
Characteristics:
1.360-degree printing plate aligning device ,easy operation.
2.Dual-drying tunnel farinfrared fire tube heating system.
3.Magnetic powder brake control for unreeling tension system, reeling with moment motor.
4.Reeling in and unreeling at dual stations,semi-automatic material change without machine halt.
5.One-off printing on both sides.

Main Technical Variables:

Model	ASY-600/6COLORS	ASY-800/6COLORS	ASY-1000/6COLORS
Length of Printing	220mm-1000mm	220mm-1000mm	220mm-1000mm
Width of Printing	600mm	800mm	1000mm
Speed of Printing	10-40mm	10-40mm	10-40mm
Accuracy of Registration	±0.2mm	±0.2mm	±0.2mm
Total Power	18kw	22kw	26kw
Weight of Machine	4300kg	4700kg	5200kg
Overall Dimensions	8500×1700×2000mm	8500×1900×2000mm	8500×2200×2000mm
