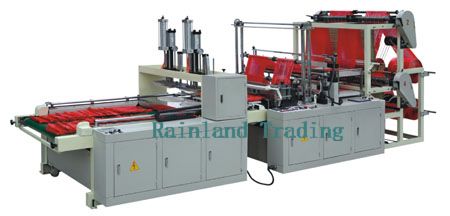

Automatic Four-line Bag Making Machine with Punching

Product Description:

Use:

This machine is suitable for making plastic vest bags of natural colour and colour-printed. It adopts dvancedphotoelectric eyes tracking which makes the printing pattern position accurate without error, the sealing synchronous with the heat-cutting without any putting force and the seated bottom be firm and beautiful. Equipped with variable frequency speed regulating motor, it has other functions such as energy-saving,over voltage andover current protection, etc, And equipped with automatic counting device, it can arbitrarily set the binding quantity and can automatically discharge and reset after the bags are piled to the set quantity.

Main Technical Variables:

Model	DF-24-500P	DF-24-700P
Max. of Bag Width	200mmx4 400mmx2	300mmx4 600mmx2
Max. of Bag Length	100-1000mm	100-1000mm
Product Thickness	0.005-0.50mm	0.005-0.50mm
Error in Length	±1mm	±1mm
Bag-making Speed	40-120pcs/min	40-120pcs/min
Main Motor	0.75kw	1.1kw
Heater Power	2kw	2.4kw
Total Power	3kw	3.8kw
Weight of Machine	1800kg	1900kg
Overall Dimensions	2600x1100x1500mm	2600x1300x1500mm
