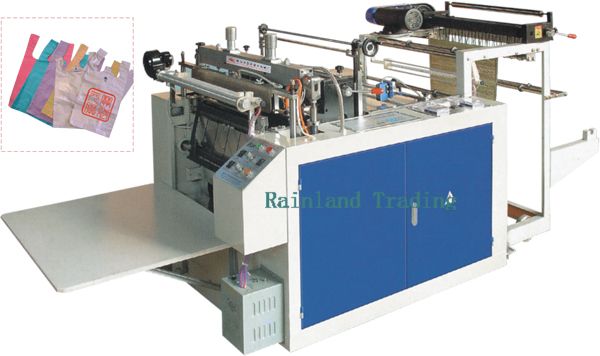

Automatic Heat-sealing and Cutting Vest Bag Making Machine

Product Description:

Use:

It is suitable for hot sealing and cutting both natural and color plastic film,which made of HDPE,LDPE etc.It??s a mots ideal equipment for producing vest bag.

Characteristics:

1.Sealing & cutting blade are in reasonable structure,convenient clean/exchange rubberiaed fabric.
2.It adopts imported photoelectrical cell to track printing with function;iflose sign,the machine stops automatically.
3.It adopts micro computer to control,step motor to pull material;and producing piece number can be set up freely.
4.It adopts photocell to track.If material is bolcked of out of material,machine will stops automatically.

Main Technical Variables:

Model	DFR-500
Producing Length	800mm
Producing Width	400mm
Thickness of Film	0.01-0.05mm
Producing Speed	50-200pcs/min
Main Power	3.5kw
Power Source	220V 50Hz
Weight of Machine	750Kg
Overall Dimensions	2900x1150x1250mm
