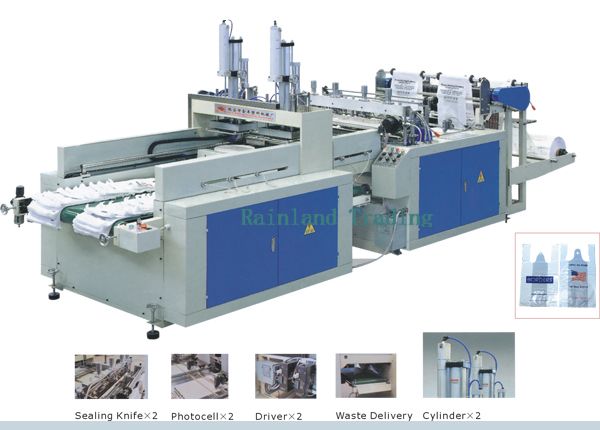

Automatic High Speed Double-Color T-shirt Bag Making Machine

Product Description:

Use:

It is applied to produce and print the double-colored or uncolored vest bags, using HDPE, LDPE roll film. It adopts PLC control, double step(servo) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process, which can save man-power greatly and yield good economic result. It’s traced by 2 photocells to make the printing very exact.

Main Technical Variables:

Model	DFR-400*2P	DFR-450*2P
Max.Bag-making Width	200-320mmx2	200-400mmx2
Max.Bag-making Length	400-600mmx2	400-600mmx2
Bag-making thickness	0.01-0.05mm	0.01-0.05mm
Bag-making Speed	150-200pcs/min x2	150-200pcs/min x2
Air pressure	5kg/cm2	5kg/cm2
Main Power	5.5kw	5.5kw
Weight of Machine	1400kg	1600kg
Overall Dimensions	4400x1520x1700mm	4800x1570x1700mm
