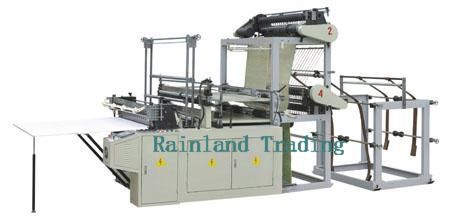

Computer Control Double-layer Four-lilne Bag Making Machine

Product Description:

Use:

This machine is controlled by micro computer. The materials are fed by stepping motor. Servo motor control system is optional. Length is made freely and followed by sensor correctly and stably. When the label is missed, the machine stops. Feeding system adopts photoelectric foLlow- up, automatic counting. Belt warning can be set up, automatic permanent temperature make bag edge seat firm and stable. Both Lines and four Lines can be used. Welding adopts double- layer four-Une stand, which can enhance economic benefits, save tabors.

Main Technical Variables:

Model	DF-24-1000	DF-24-1100	DF-24-1300	DF-24-1500
Max. of Bag Width	400mmx4 900mmx2	500mmx4 1000mmx2	600mmx4 1200mmx2	700mmx4 1400mmx2
Max. of Bag Length	1500mm	1500mm	1500mm	1500mm
Bag-making Speed	30-100pcs/min	30-100pcs/min	30-100pcs/min	30-100pcs/min
Product Thickness	0.01-0.20mm	0.01-0.20mm	0.01-0.20mm	0.01-0.20mm
Main Motor	2.2kw	2.2kw	2.2kw	2.2kw
Step Motor	0.35kw	0.35kw	0.35kw	0.35kw
Feeding Motor	0.4kw	0.4kw	0.6kw	0.6kw
Heater Power	0.8kw×4	0.8kw×4	1.0kw×4	1.0kw×4
Power Supply	50Hz 220V	50Hz 220V	50Hz 220V	50Hz 220V
Weight of Machine	900kg	1100kg	1200kg	1500kg
Overall Dimensions	2800x1900x1600mm	2800x2100x1600mm	2800x2300x1600mm	2800x2500x1600mm
