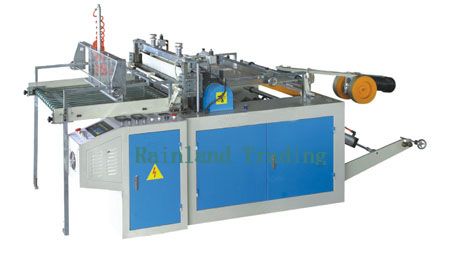

Computer Control Non-tension Lock-bottom Bag Making Machine

Product Description:

Use:
This machine is professionally suitable for non-tension special-thick films. It has the features of fast speed, high production efficiency, firm and beautiful sealing.

Main Technical Variables:

Model	DF-500	DF-600	DF-800	DF-1000
Max. of Bag Width	400mm	500mm	700mm	900mm
Max. of Bag Length	400mm	500mm	700mm	900mm
Bag-making Speed	30-150pcs/min	30-150pcs/min	30-150pcs/min	30-150pcs/min
Product Thickness	0.05-0.40mm	0.05-0.40mm	0.05-0.40mm	0.05-0.40mm
Main Motor	0.75kw	0.75kw	0.75kw	0.75kw
Step Motor	0.35kw	0.35kw	0.35kw	0.35kw
Feeding Motor	0.40kw	0.40kw	0.40kw	0.40kw
Heater Power	0.40kw×2	0.50kw×2	0.70kw×2	0.90kw×2
Power Supply	50Hz 220V	50Hz 220V	50Hz 220V	50Hz 220V
Weight of Machine	1000kg	1100kg	1200kg	1500kg
Overall Dimensions	2800×1000×1700mm	2800×1100×1700mm	2800×1300×1700mm	2800×1500×1700mm
