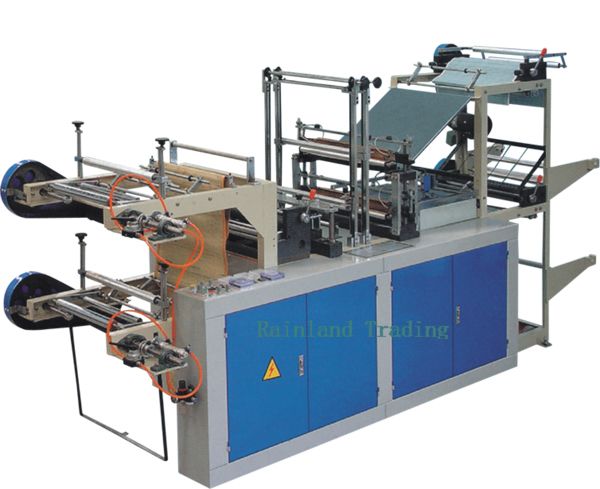

Computer Control Rolling and Dotting Flat Bag Making Machine

Product Description:

Use:

It is suitable for using all kinds of local-color film or color-printing film, such as HDPE, LDPE, LLDPE, PP and etc. It is an ideal equipment for making flat-rim bag, garbage bag, fruits bag and etc.

Characteristics:

1. It adopts PLC to winding and unwinding materials. And the photoelectrical tracing on color code ensure precision in color-printing. If lose sign, it will be stopped automatically.

2.It adopts double-lane for winding, unwinding and heat-sealing.

3.With microcomputer for control, and step motor(servo motor) to feed materials, it has multi-function, such as set producing length and quantity according to your requirements, automatic alarm on reaching the set quantity and etc.

Main Technical Variables:

Model	LDFD-500
Producing Length	1000mm
Producing Width	350mmx2
Thickness of Film	0.01-0.10mm
Producing Speed	30-130pcs/min
Main Power	4.5kw
Power Source	220V 50Hz
Weight of Machine	900Kg
Overall Dimensions	3600x1050x1750mm
