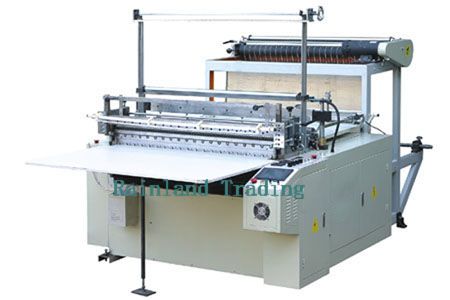

Computer Control Wide Bag Making Machine

Product Description:

Use:

This machine adopts imported servo motor control system, follow-up by sensor, length fixed freety, correctty and stabty, and it is suitabte for plastic films like LDPE, HDPE, LLDPE etc. especiaLLy for Lengthened and widened products. Labors are saved and efficiency is high.

Main Technical Variables:

Model	DF-1200	DF-1300	DF-1500	DF-1700
Max. of Bag Width	1100mm	1200mm	1400mm	1600mm
Max. of Bag Length	2500mm	2500mm	3000mm	3000mm
Bag-making Speed	5-100pcs/min	5-100pcs/min	5-100pcs/min	5-100pcs/min
Product Thickness	0.05-0.40mm	0.05-0.40mm	0.05-0.40mm	0.05-0.40mm
Main Motor	2.2kw	2.2kw	2.2kw	2.2kw
Step Motor	2.0kw	2.0kw	2.0kw	2.0kw
Feeding Motor	0.6kw	0.6kw	0.6kw	0.6kw
Heater Power	1.0kw×2	1.2kw×2	1.5kw×2	1.7kw×2
Power Supply	50Hz 220V	50Hz 220V	50Hz 220V	50Hz 220V
Weight of Machine	1500kg	1700kg	2000kg	2200kg
Overall Dimensions	3800×1800×1700mm	3800×1900×1700mm	3800×2000×1700mm	3800×2200×1700mm
