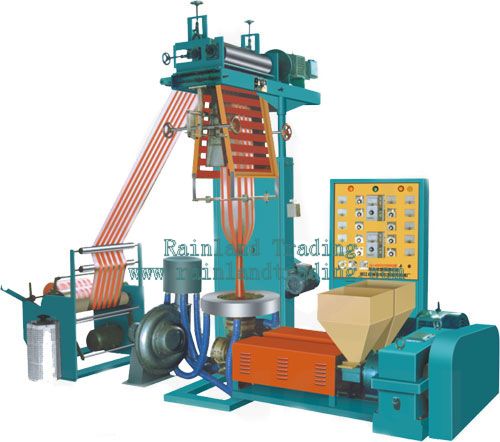

Double-colour Film Blowing Machine

Product Description:

Use:
It is used for blowing the various plastic film of low density polyethylene(LDPE) and high density polythylene(HDPE) colour striped plastic film, etc, Which are widely used for packing food, fruit,garments, textile, dailly necessities and other civil and industral products.

Characteristics:
The cylinders and the screw stems of model SJ-40Dx2-FM600 extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.FM-600 auxiliary machine can be freely adjusted within the limits of 700mm according to the technologjcal requirements of different materials, and has is fitted with a plug-in plate mechanism for making vest bag ,The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

Main Technical Variables:

Model	SJ-40Dx2-FM600
Screw Diameter	40mmx2
Screw Ratio	L/D28:1
Screw Speed	10-100r/min
Power of Main Motor	11kw
Main Output	30kg/h
Max.Folding Width of Film	580mm
Single-sided Thickness of Film	0.006-0.06mm
Weight of Machine	2200kg
Overall Dimensions	3800x2000x2800mm
