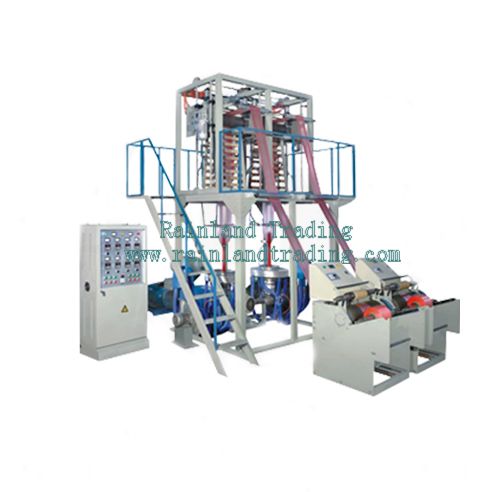

Double-head Film Blowing Machine

Product Description:

Use:
It is used for blowing low density polyethylene(LDPE)and high-density polyethyene(HDPE)plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and testile industry, etc.

Characteristics:
Both the cylinder and the screw of the extruder are made of high-quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.Scientifically designed, this machine set has tow heads for one extruder with such advantages as increasing production capacity, saving evergy, labour and workshop area, etc.

Main Technical Variables:

Model	SJ-55x2-FM600	SJ-60x2-FM700	SJ-65x2-FM800
Screw Diameter	55mm	60mm	65mm
Screw Ratio	1:28-30	1:28-30	1:28-30
Screw Speed	10-110r/min	10-110r/min	10-110r/min
Main Output	46kg/h	55kg/h	70kg/h
Max.Folding Width of Film	550mmx2	650mmx2	750mmx2
Single-sided Thickness of Film	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm
Power of Main Motor	15kw	18.5kw	22kw
Total Power	26kw	30kw	35kw
Weight of Machine	2800kg	3200kg	3800kg
Overall Dimensions	4800x2200x3000mm	5000x2400x3200mm	5200x2600x3400mm
