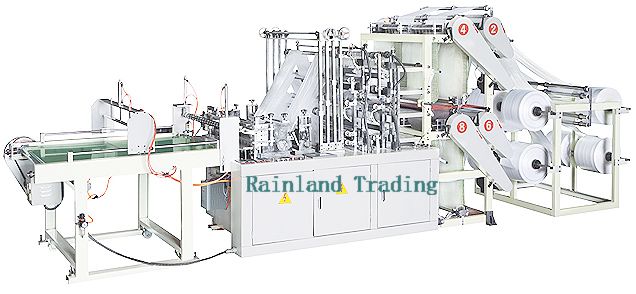

Double-layer Eight-line Bottom Sealing Bag Making Machine

Product Description:

Use:

Double-layer,Eight-line,Bottom Sealing Bag-making Machine has such functions as photoelectric automatic traching microcomputer length setting,high limit stopping,automatic counting,automatic alarm on reaching the set value,high compensating accuracy with such characteristics as neatbags,little error and high automatic of whole machine,so it is a kind of ideal equipment for producingblank bags,colour bags,flat bags and vest bags,etc.And other varlous plastic soft packing bags.

Main Technical Variables:

Model	DF-28-900	DF-28-1100	DF-28-1200
Max. of Bag Width	220mmx8 800mmx2	320mmx8 1000mmx2	420mmx8 1100mmx2
Max. of Bag Length	1000mm	1000mm	1000mm
Product Thickness	0.009-0.1mm	0.009-0.1mm	0.009-0.1mm
Bag-making Speed	20-100pcs/min	20-100pcs/min	20-100pcs/min
Driving Motor	1.5kw	2.2kw	2.2kw
Total Power	7.5kw	8.5kw	9.5kw
Weight of Machine	1100kg	1300kg	1600kg
Overall Dimensions	5000×1500×2000mm	5000×1700×2000mm	5000×1800×2000mm
