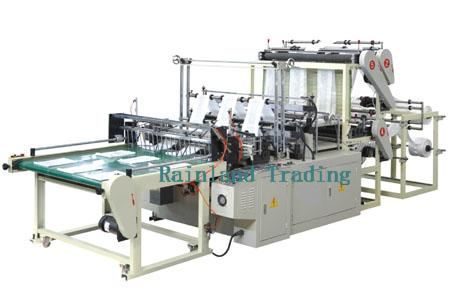

Double-layer Six-line Bottom Sealing Bag Making Machine

Product Description:

Use:

Double-layer, Six-line, Bottom Sealing Bag-making Machine has such functions as photoelectric automatic tracking microcomputer length setting, high limit stopping, automatic counting, automatic alarm on reaching the set value, high compensation accuracy with such characteristics as neatbags, little error and high automatic of whole machine, so it is a kind of ideal equipment for producing blank bags, colour bags, flat bags and vest bags, etc. And other various plastic soft packing bags.

Main Technical Variables:

Model	DF-26-900	DF-26-1100	DF-26-1200
Max. of Bag Width	250mmx6 800mmx2	300mmx6 1000mmx2	330mmx6 1100mmx2
Max. of Bag Length	1000mm	1000mm	1000mm
Bag-making Speed	30-100pcs/min	30-100pcs/min	30-100pcs/min
Product Thickness	0.01-0.2mm	0.01-0.2mm	0.01-0.2mm
Main Motor	1.5kw	1.5kw	1.5kw
Feeding Motor	0.3kw×6	0.3kw×6	0.3kw×6
Heater Power	0.85kw×4	1.20kw×4	1.50kw×4
Power Supply	50Hz 220V	50Hz 220V	50Hz 220V
Weight of Machine	1300kg	1500kg	1700kg
Overall Dimensions	3500×1600×1700mm	3500×1800×1700mm	3500×1900×1700mm
