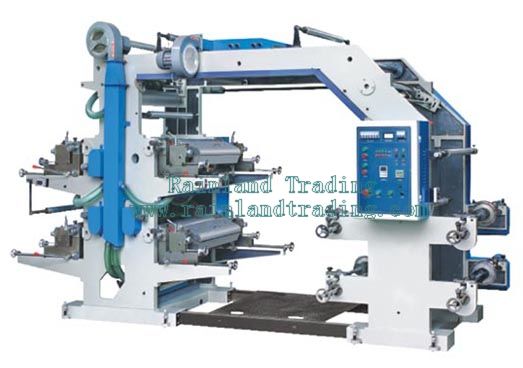

Four-color Flexography Printing Machine

Product Description:

Use:
Introduce sentitization resin as flexible printing plate ,suitable for printing such packing materials as polyethylene,polypropylene bag,cellophane and roll paper,etc.It is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag,vest bag and clothes bag,etc.
Main Technical Variables:

Model	YT-600/4COLORS	YT-800/4COLORS	YT-1000/4COLORS
Max.width of Printing	560mm	760mm	960mm
Printing Length	191-914mm	191-914mm	191-914mm
Max.width of Base Material	450mm	450mm	450mm
Printing Speed	5-50m/min	5-50m/min	5-50m/min
Plate Thickness(Both side adhesive tape included)	2.38mm	2.38mm	2.38mm
Total Power	10.87kw	12.5kw	14.37kw
Weight of Machine	3000kg	3500kg	4000kg
Overall Dimensions	3900×1660×2950mm	3900×1860×2950mm	3900×2060×2950mm
