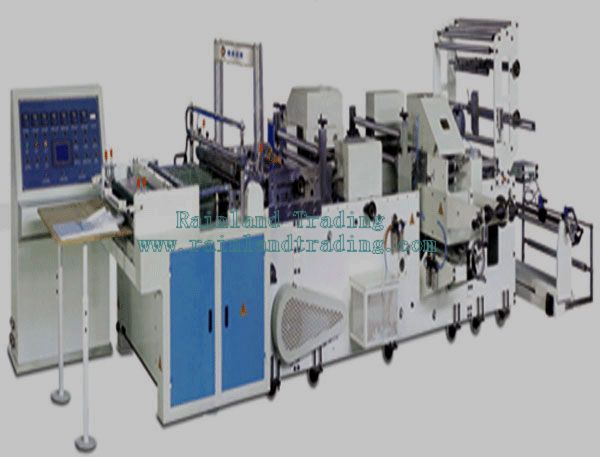

Fully Automatic Computer Control Patch Bag Handle Machine

Product Description:

Characteristics:

The whole machine adopts microcomputer control,with Panasonic servo motor control system. Arbritrary fixed-length,accurate and stable photo ectric tracking ,stopping automatically when the label is lost .Automatic pressure synchronous punching and synchronous sealig.Automatic counting,and can set count alarm.Automatic constant temperature,film and smooth sealing.

Main Technical Variables:

Model	HB-800(Handle bag)	PB-800(Patch bag)
Bag-making width	200-700mm	200-700mm
Bag-making lenth	200-700mm	200-700mm
Production Speed	20-65pcs/min	20-50pcs/min
Thickness of film	LD 0.045-0.007mm	LD 0.045-0.007mm
Thickness of film	HD 0.025-0.035mm	HD 0.025-0.035mm
Total power	8kw	8kw
Packing size	2100mm	2100mm
Weight of Machine	2800kg	2800kg
Overall Dimensions	7000×2000×1850mm	7000×2000×1850mm
