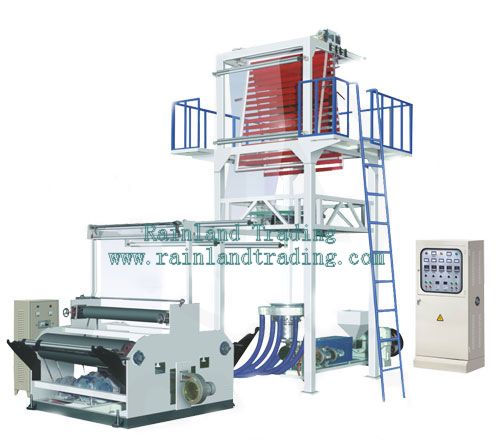

HDPE-LDPE Dual-Purpose Film Blowing Machine

Product Description:

Use:
It is used for blowing the various plastic film of low density polyethylene(LDPE),high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc,Which are widely used for packing industrial products,textile,garments and food and for comering farvland.

Characteristics:
The cylinders and the screw stems of the above extruders are made of highquality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.
The auxiliary machine has a platform working table for making operation easy.The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

Main Technical Variables:

Model	SJ-45-FM600	SJ-55-FM800	SJ-60-FM1000
Screw Diameter	45mm	55mm	60mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	7.5kw	11kw	15kw
Main Output	35kg/h	50kg/h	65kg/h
Max.Folding Width of Film	600mm	800mm	1000mm
Single-sided Thickness of Film	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm
Total Power	18kw	22kw	28kw
Weight of Machine	2000kg	2200kg	2800kg
Overall Dimensions	4200x1800x3600mm	4400x2000x4000mm	4600x2300x4200mm

Model	SJ-65-FM1200	SJ-80-FM1500	SJ-100-FM2000
Screw Diameter	65mm	80mm	100mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	18.5kw	30kw	55kw
Main Output	76kg/h	86kg/h	160kg/h
Max.Folding Width of Film	1200mm	1500mm	2000mm
Single-sided Thickness of Film	0.006-0.10mm	0.01-0.10mm	0.01-0.10mm
Total Power	32kw	52kw	80kw
Weight of Machine	3300kg	4300kg	5800kg
Overall Dimensions	4800x2500x4500mm	5200x2800x5000mm	5800x3300x6000mm
