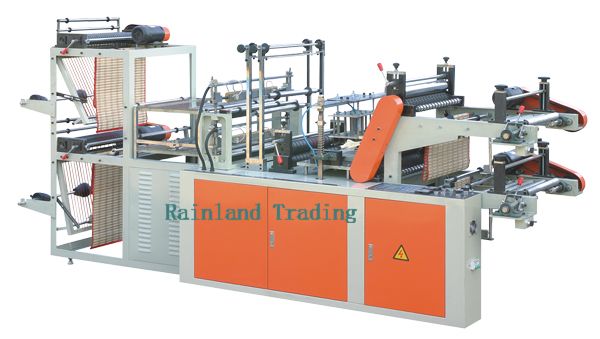

High-Speed Computer Control Continuous Rolling Flat and Vest Bag Making Machine

Product Description:

Use:

The high and low density polyethylene film bags produced by the machine are applied to shopping in the supermarkets, shops and markets.

Characteristics:

This machine a specially-designed point-cut rolling dual-purpose for vest & flat bags,is controlled by a computer, the step(servo) setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurately, the computer numerical control can be selected to adjust the length of bag the machine will automatically stop and sound a warning if there is something wrong with the printing bags.

Main Technical Variables:

Model	DZB-500	DZB-600	DZB-800
Max.Width of Bag-making	400mm	500mm	700mm
Max.Length of Bag-making	1200mm	1200mm	1200mm
Bag-making Thickness	0.008-0.15mm	0.008-0.15mm	0.008-0.15mm
Speed of Bag-making	40-200pcs/min	40-120pcs/min	40-120pcs/min
Power of Motor	1.1kw	1.1kw	1.5kw
Electric Heating Power	1.2kw	1.6kw	2.2kw
Weight of Machine	800kg	900kg	1000kg
Overall Dimensions	3600x1200x1700mm	3600x1300x1700mm	3600x1500x1700mm
