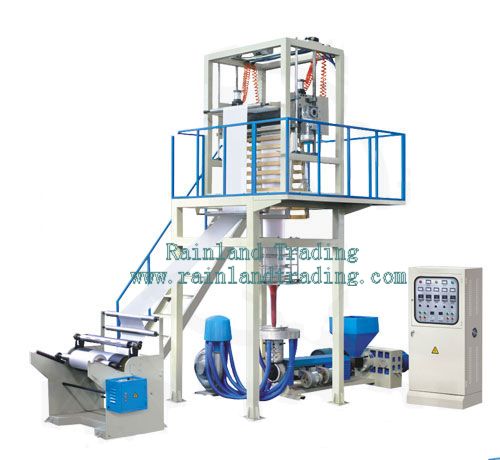

High Speed Film Blowing Machine

Product Description:

Use:
Its extruder,cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way.Hence it is sound in hardness,durable in corrosion resistance.The specially-designed screw is of sound quality in plasticizing which helps increase the production capacity.It is applied to blowing the plastic films like low density polytene(LDPE),high density polytene(HDPE)and linear low density polytene(LLDPE),It is widely applied to producing the packing bags for foodstuff, clothing rubbish bag and vest ones.

Main Technical Variables:

Model	SJ-45-FM800	SJ-55-FM1000	SJ-60-FM1200
Screw Diameter	50mm	55mm	60mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-120r/min	10-120r/min	10-120r/min
Power of Main Motor	18.5kw	22kw	30kw
Main Output	30-60kg/h	40-80kg/h	50-100kg/h
Max.Folding Width of Film	800mm	1000mm	1200mm
Single-sided Thickness of Film	0.008-0.10mm	0.008-0.10mm	0.008-0.10mm
Total Power	28kw	36kw	42kw
Weight of Machine	2600kg	3000kg	3500kg
Overall Dimensions	4600x2600x4000mm	4800x2800x4300mm	5000x3000x4800mm
