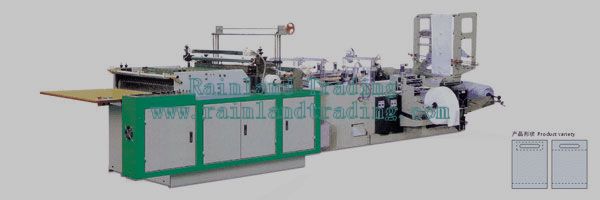

Multi-functional Bag-making Machine

Product Description:

Characteristics:
1. The entire machine is controlled by microcomputer and the material-dragging is done by step-type motor.
2. Arbirtrary fixed-length,accurate and stable step photoelectric tracking.Stopping automatically when the cursos is     lost.
3. Synchronous punching and sealing under automatic air pressure.
4. Automatic counting and fixable alarming through counting.
5. Heat sealing with decorative border,qutomatic constant temperature.Firm and smooth sealing
6. Parcky bag,handle bag,and rope penetrating bag withside sealing and heat-cutting.                                            Main Technical Variables:

Model	JP-700	JP-800
Bag-making width	200×600mm	200×700mm
Bag-making lenth	200×600mm	200×700mm
Production Speed	30-60pcs/min	30-60pcs/min
Thickness of Film	L.DPE 0.045-0.07mm	L.DPE 0.045-0.07mm
	H.DPE 0.075-0.035mm	H.DPE 0.075-0.035mm
	L.L.DPE 0.075-0.07mm	L.L.DPE 0.075-0.07mm
Heating power	1.5kw×2.04kw×4	1.8kw×2.04kw×4
Power Supply	6.5kw	8kw
Packing Size	1700mm	2100mm
Air compressing	5Hp	5Hp
Weight of Machine	2400kg	2800kg
Overall Dimensions	7000×1850×1850mm	7000×2000×1850mm
