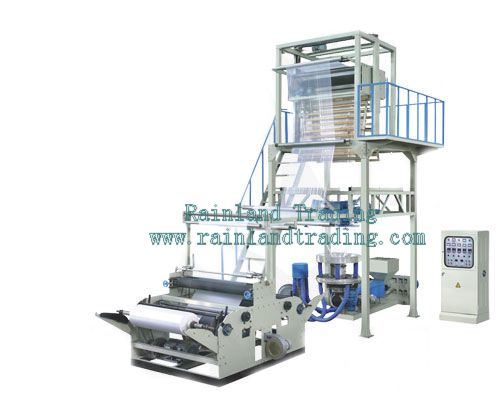

PE Polyethylene Heating Constriction Film Blowing Machine

Product Description:

Use:
It is used to blowing the various PE thermal shrink-ing membranes which are applied extensively to food, medicine, beer bottle,material bottle, box, case, cloth reel, glass, all sizes of trays, pottery, tissue, etc.,

Characteristics:
The cylinders and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.
The auxiliary machine has a platform working table for making operation easy.The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

Main Technical Variables:

Model	SJ-45-FM600	SJ-55-FM800	SJ-60-FM1000	SJ-65-FM1200	SJ-80-FM1500
Screw Diameter	50mm	55mm	60mm	65mm	80mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	11kw	15kw	18.5kw	22kw	30kw
Main Output	35kg/h	50kg/h	50kg/h	80kg/h	120kg/h
Max.Folding Width of Film	600mm	800mm	1000mm	1200mm	1500mm
Single-sided Thickness of Film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Total Power	22kw	26kw	30kw	36kw	46kw
Weight of Machine	2000kg	2300kg	2800kg	3300kg	4300kg
Overall Dimensions	400x1800 x3600mm	4200x2000 x4000mm	4600x2300 x4200mm	4800x2500 x4500mm	5200x2800 x5000mm
