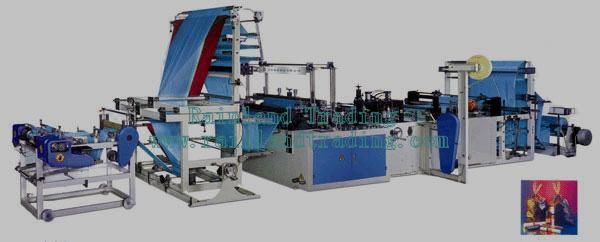

Ribbon-through Type Garbage Making-bag Machine

Product Description:

Characteristics:

This equipment has been improved ,designed and manufactured by our company ribbon-through reterring to foreign technology and is specially used for making ribbon-through type garbage bags or BOPP,PP,flat bags ,etsc.of LDPE,HDPE plastic film and other materials.It adopts computer control,electric eye tracking,qutomatic temperature control,automatic counting and automatic alarm and meanwhile has such functions as edge folding,mouth cutting,punching and ribbon passing thtough,etc.With such characteristics as once-through operation,film and standard sealing and sealed edge and beautiful appearance,etc.The quipment also can produce continuous-rolled bags with special requirements and has such functions as multi-foding and spot breaking.So it is a kind of ideal supporting equipment for bag making machine.

Main Technical Variables:

Model	RLD-1000
Width of Bag-making	≤780mm
Length of Bag-making	≤950mm
Thickness of Film	0.01～0.05mm
Speed of Bag-making	15～40pcs/min
Power supply	380V
Total Power	8kw
Nomal Working	4kw
Weight of Machine	1200kg
Overall Diemsions	6300×1700×1950mm
