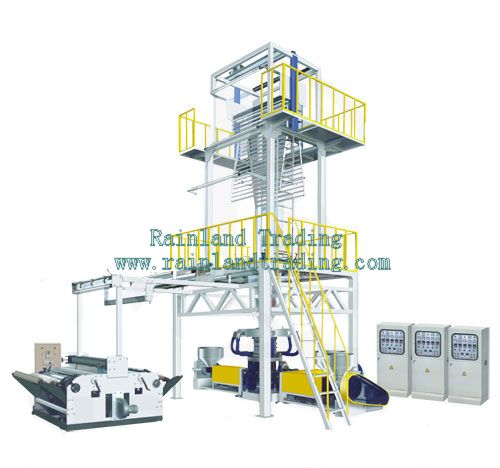

Three-layer Common-extruding Rotary Die-head Film Blowing Machine

Product Description:

Use:
The lines are designed developed by our corporation according to market need,they reach the advanced levels in the 90s,come up with analogous lines in Home. It is optimum Designed on the trounds of preference of analogous lines in foreign and Home. The lines can be blown continuous 1200/1300/1500mm in fold width 0.08mm in the thickness packaging films, from LDPE, HDPE, LLDPE, MLLPE, Paby horzontal extrusion up blown. The film has good in sulation, for instance holding temperature, antihu-mid, antibreeze, anti-rain, anti-rorst, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding,salt vegetables, fresh milk, drink.

Characteristics:
1.Die head is lauer type spiral mandrel, continuous 360, rotation.
2.Screen pack changer Design is rational convenience,reliable, safe in operation.
3.Various functuonal parts may be installed to the lies, such as length counting device,verdtical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.

Main Technical Variables:

Model	SJ-45x3-FM1000	SJ-50x3-FM1200	SJ-55x3-FM1500
Screw Diameter	45mmx3	50mmx3	55mmx3
Screw Ratio	L/D30:1	L/D30:1	L/D30:1
Screw Speed	15-150r/min	15-150r/min	15-150r/min
Power of Main Motor	11kwx3	15kwx3	18.5kwx3
Range of Die	¢130-¢180	¢130-¢250	¢130-¢300
gle-sided Thickness of Film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Max.Folding Width of Film	1000mm	1200mm	1500mm
Electric Total Capacity	76kw	88kw	102kw
Weight of Machine	4200kg	5300kg	6200kg
Overall Dimensions	6600x4100x5000mm	6800x4300x6000mm	7000x4800x6800mm
