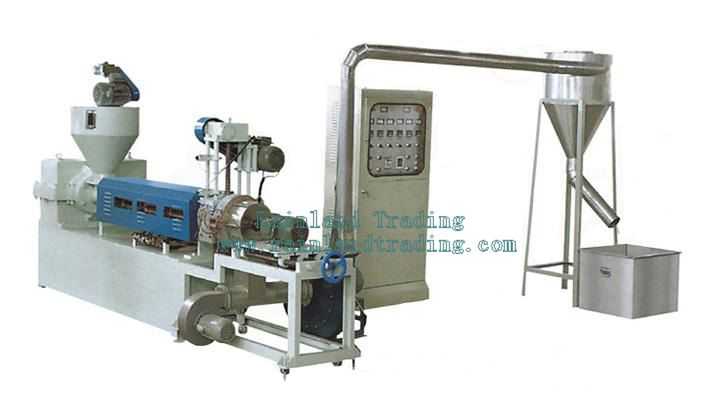

Wind-cooling Hot-cutting plastic Recycling Compounding Machine

Product Description:

Characteristics:

This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller.

Main Technical Variables:

Model	SJ-90	SJ-100	SJ-110	SJ-120
Type Diameter of Screw Stem	90	100	110	120
Major Diameter Ratio of Screw Stem	L/D 20：1 -22：1	L/D 20：1 -22：1	L/D 20：1 -22：1	L/D 20：1 -22：1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of Machine	2600kg	2800kg	3000kg	3200kg
Overall Dimensions	4000×1500×1800mm	4000×1500×1800 mm	4000×1500×1800 mm	4600×1500×1800 mm
