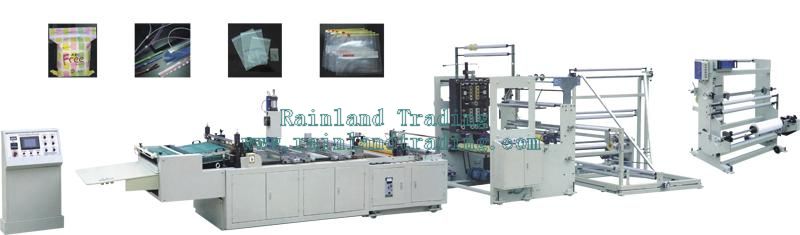

Zipper Bag Making Machine (with attachment)

Product Description:

Characteristics:

1.It uses fully automatic servo motor with computer digital function to control length,it’s easy for operation.The produced bag is very tight at the seals,which apparently shows good quality.

2.Flow process of production is from rolled material through automatic edge alignment,edge trimming,strip piercing,laminating,ultrasonic compressive embossing,photocell sensing,hole punching,thermo cutting off and ends with automatic counting.All of the operation are fully automatic.

3.It equips automatic stop equipment,and the machine will stop when it’s running out of material supply or when photocell is out of order or when temperature is losing down and below the minimum required.

Main Technical Variables：

Model	ZB-600	ZB-800
Material	LDPE-PP-PPE	LDPE-PP-PPE
Capability	50-150 (Cycle/min)	50-130 (Cycle/min)
Cutting width	100-500mm	120-600mm
Cutting length	120-600mm	150-180mm
Thickness of film	0.04-0.15mm	0.04-0.15mm
Film annulus diameter	500*1200mm	500*1600mm
Servo motor	1kw	1kw
Transducer motor	1.5kw	2.2kw
Heater	3kw	3.5kw
Food-out motor	0.25kw	0.37kw
Ultrasonic	1set	1set
Conveying motor	0.55kw	0.75kw
Food film motor	0.55kw	0.75kw
Sealing capacity	10-30m/min	0-30m/min
Cooling	0.37kw	0.37kw
Power	15kw	17kw
Overall dimensions	8500×1800×1800mm	8650×1900×1800mm
Voltage	200V 50 HZ	200V 50HZ
Press empty machine	1900×1850×1700mm	2100×1850×1700mm
Packing dimensions	1700×1500×1900mm	1900×1500×1900mm
